How to use pyROOT 応用編 その1

上下に2つのグラフを表示したいなー。

そんなときはこれを使うべし。

cv.Divide( 1, 2 )

view plainprint?

1. #/bin/usr/env python
2.
3. import sys, math
4. import ROOT
5.
6. if __name__=='__main__':
7.
8.     # set graph1 style
9.     graph1 = ROOT.TGraph()
10.     graph1.SetLineWidth(2)
11.     graph1.SetLineColor(4)
12.     graph1.SetLineStyle(1)
13.
14.     # set graph2 style
15.     graph2 = ROOT.TGraph()
16.     graph2.SetLineWidth(2)
17.     graph2.SetLineColor(3)
18.     graph2.SetLineStyle(1)
19.
20.     # set title
21.     graph1.SetTitle("Graph Test 2 top")
22.     graph2.SetTitle("Graph Test 2 bottom")
23.
24.     # set data point
25.     for x in range(10) :
26.         np = graph1.GetN()
27.         graph1.SetPoint(np, x, x**2)
28.         graph2.SetPoint(np, x, x)
29.
30.     # open canvas
31.     cv = ROOT.TCanvas("cv", "Graph Test", 800, 800)
32.
33.     # divide canvas to two
34.     cv.Divide(1,2)
35.
36.     # top plot
37.     pad = cv.cd(1)
38.     pad.SetGridx(1)
39.     pad.SetGridy(1)
40.
41.     # plot to top pannel
42.     graph1.Draw("APC")
43.
44.     # set X axise of graph1
45.     axisY = graph1.GetYaxis()
46.     axisY.SetTitle("x**2")
47.
48.
49.     # bottom plot
50.     pad = cv.cd(2)
51.     pad.SetGridx(1)
52.     pad.SetGridy(1)
53.
54.     # plot to bottom pannel
55.     graph2.Draw("APC")
56.
57.     # set Y axise of graph1
58.     axisY = graph2.GetYaxis()
59.     axisY.SetTitle("x")
60.
61.
62.     # set X axis
63.     axisX = graph2.GetXaxis()
64.     axisX.SetTitle("x")
65.
66.
67.     # export

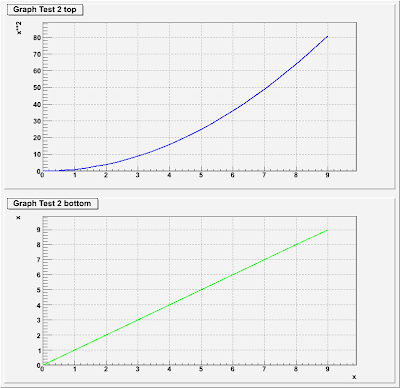

68.     cv.Print("graphtest2.png")
